Habbo Camera Data Structure (HCDS) v1.0

Specification Status: Draft
Date: 2025-04-29
Available in: English

Table of Contents

1. Introduction

1.1 Abstract

Habbo Camera Data Structure (HCDS) v1 is a standard for the JSON schema designed to represent a snapshot of a room scene for the camera system of Habbo Hotel. It encodes metadata, graphical components such as planes and sprites, filter effects, and rendering state information.

While HCDS v1 reflects how Habbo Hotel interprets a room schene, it is not an official Sulake data structure, and future changes may not be adopted by Sulake.

1.2 Scope and Intent

1.2.1. This Document

This specification exists to formalize and document how Habbo serializes a room scene to be rendered by the server into a final image. It is:

An unofficial community-maintained specification.
Intended for developers and hobbyists building tools to parse, generate, and manipulate room scenes before they’re rendered outside the game.

1.2.2. The Data Structure

HCDS v1 is a JSON representation of a room scene that enables:

Interoperability between the client and the server for rendering purposes.
Sucurity that the rendered image does not include sprites not allowed.

1.3 Audience

This document is intended for developers, system architects, toolmakers, and content creators who work with Habbo room rendering engines or need to persist, transfer, or inspect the camera data.

2. Status of This Document

HCDS v1.0 defines the a known structure for how the Camera feature serializes the relevant part of the screen to be rendered into a picture by the server, based on the original implementation in Habbo Hotel.

HCDS is community-maintained. While efforts are made to ensure accuracy, Sulake may change the format at any time. Future extensions will aim to preserve backward compatibility whenever possible.

3. Normative Language

The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “MAY”, and “OPTIONAL” in this document are to be interpreted as described in RFC 2119.

4. Conformance

An implementation is considered HCDS v1.0 compliant if it adheres to the structural rules, value constraints, and processing semantics defined in this document. A conforming parser or generator implementation:

MUST validate every property and subschema exactly as defined in the JSON Schema (Appendix A), including types, required fields, and value ranges.
MUST verify the top‐level checksum matches the computed integrity check over the serialized payload before accepting the snapshot.

A valid HCDS v1.0 room snapshot MUST:

Include all required top-level properties: planes, sprites, modifiers, filters, roomid, status, timestamp, and checksum.
Ensure each plane.cornerPoints array contains exactly four valid point objects with integer x and y.
Constrain each filter.alpha to an integer in the range 0–255.

Implementations MAY support extra, non-interfering features, such as custom filter types or metadata fields, provided those extensions do not break core compliance with the schema in Appendix A.

5. Definition

5.1 Terminology

Term	Definition
Snapshot	A serialized capture of all information needed to render a room at a point in time.
Plane	A flat polygon (always a rectangle here) defining a portion of room geometry.
Sprite	A 2D image placed in the scene, rendered after planes.
Modifier	?Unknown?
Filter	A post-processing effect applied to the final rendered image.
Z-depth	The drawing order depth; higher numbers render “closer” to the camera.

5.2 Overall Structure

A room snapshot object consists of four major component groups plus metadata:

Geometry (planes)
Sprites (scene actors)
Visual Effects (filters)
Metadata & State (room id, zoom, status, timestamp, checksum)

5.3 Geometry (Planes)

Each entry in the planes array is a plane object, representing one rectangular surface:

Property	Type	Description
`color`	integer	Packed RGB tint applied to the plane.
`bottomAligned`	boolean	If true, plane’s bottom edge aligns to room floor; otherwise free-floating.
`z`	number	Z-depth for render ordering among other planes and sprites.
`cornerPoints`	array	Exactly four `point` objects in clockwise order defining the rectangle.
`texCols`	array	One or more `texCol` objects listing textures to tile across the plane.

5.4 Texturing (texCol)

A texCol object describes how textures are applied:

Property	Type	Description
`assetNames`	array	List of one or more texture identifiers.

5.5 Sprites

Each element of sprites is a sprite object to define one 2D asset rendered on top of geometry:

Property	Type	Description
`x`, `y`	integer	Screen-space coordinates.
`z`	number	Z-depth for layering relative to planes.
`name`	string	Resource key for the sprite graphic (e.g. `"bc_block_1_64_a_0_3"`, `"cubie_shelf_1_b_64_a_0_0"`).
`color`	integer	Packed RGB tint applied to the sprite.

5.6 Visual Effects

Each filter object applies a post-process step:

Property	Type	Description
`name`	string	Filter identifier (e.g. `"increase_saturation"`, `"stars_hardlight_02"`).
`alpha`	integer	Intensity from 0 (none) to 255 (full).

5.7 Metadata & Rendering State

Property	Type	Description
`roomid`	integer	Unique room instance ID.
`zoom`	integer	Camera zoom level; 1 = default, 2 = zoomed-in.
`status`	integer	Rendering status.
`timestamp`	integer	Epoch ms when snapshot was taken.
`checksum`	integer	Simple integrity check over serialized payload.

6. Error Handling

Error Code	Description
ERR_MISSING_REQUIRED	A required top-level property (e.g. `planes`, `sprites`, `roomid`) is missing.
ERR_EXTRA_PROPERTY	An unexpected property was encountered (outside of allowed `modifiers` keys).
ERR_INVALID_TYPE	A property value does not match the expected JSON type (e.g. non-integer `timestamp`).
ERR_CORNERPOINT_COUNT	A `plane.cornerPoints` array does not contain exactly four points.
ERR_FILTER_ALPHA_RANGE	A `filter.alpha` value is outside the permitted range 0–255.
ERR_CHECKSUM_MISMATCH	The provided `checksum` does not match the computed integrity check of the payload.

A conforming HCDS v1.0 processor MUST reject any room snapshot entry that triggers one or more of these errors and surface the corresponding error code.

7. Example Entry

{
  "planes": [
    {
      "color": 9869476,
      "bottomAligned": false,
      "z": 1000.0,
      "cornerPoints": [
        { "x": 171, "y": 42 },
        { "x": -341, "y": 298 },
        { "x": -168, "y": 87 },
        { "x": 87, "y": -341 }
      ],
      "texCols": [
        {
          "assetNames": ["wall_texture_64_0_wall_white"]
        }
      ]
    },
    {
      "color": 10066278,
      "bottomAligned": false,
      "z": 892.0,
      "cornerPoints": [
        { "x": 10, "y": -5 },
        { "x": 139, "y": -5 },
        { "x": 203, "y": -21 },
        { "x": 171, "y": 10 }
      ],
      "texCols": [
        {
          "assetNames": ["floor_texture_64_0_floor_basic"]
        }
      ]
    },
    {
      "color": 7369339,
      "bottomAligned": false,
      "z": 1500.0,
      "cornerPoints": [
        { "x": -343, "y": 86 },
        { "x": 171, "y": -168 },
        { "x": 169, "y": -169 },
        { "x": 87, "y": 320 }
      ],
      "texCols": []
    }
  ],
  "sprites": [
    { "x": 107, "y": 39,  "z": -14.0, "name": "val12_marble1_64_b_0_0", "color": 16777215 },
    { "x": 108, "y": 40,  "z": -16.9, "name": "val12_marble1_64_a_0_0", "color": 16777215 },
    { "x": 299, "y": 40,  "z": -20.5, "name": "classic9_floor1_64_a_0_0", "color": 16777215 }
  ],
  "modifiers": {},
  "filters": [
    { "name": "increase_saturation", "alpha": 127 },
    { "name": "increase_contrast",   "alpha": 127 },
    { "name": "hue_bright_sat",      "alpha": 187 },
    { "name": "texture_overlay",     "alpha": 197 },
    { "name": "pinky_nrm",           "alpha": 220 },
    { "name": "color_2",             "alpha": 55 },
    { "name": "night_vision",        "alpha": 50 },
    { "name": "stars_hardlight_02",  "alpha": 127 }
  ],
  "roomid": 987654321,
  "zoom": 2,
  "status": 8,
  "timestamp": 1710000000000,
  "checksum": 4242 // TODO: recalculate the checksum
}

8. Extensibility and Future Work

Future versions MAY:

Introduce new filter types or metadata fields.
Support layered rendering.
Support for stickers.
Include animation state or scripting metadata.

Future revisions will maintain backward compatibility wherever feasible, and such extensions will be versioned appropriately.

9. Security Considerations

While HCDS is purely textual and does not involve code execution, parsers MUST:

Ensure untrusted JSON inputs are validated before use.
Do not evaluate string contents (e.g., in modifiers) as code.
Data integrity checks via checksum are advisory, not cryptographic.
Large arrays may cause denial-of-service (DoS) if unchecked.

9.1. Performance Considerations

To keep parsing and rendering more efficient, implementations SHOULD observe the following guidelines (non-normative):

Array limits: aim for at most 50 planes, 2000 sprites, and 50 filters per snapshot.
Geometry precision: use single-precision floats for z values, rounded to 5 decimal places.
Memory footprint: reuse object instances where possible and pool repeated data (e.g., texCol.assetNames) to reduce garbage collection overhead.
Payload compression: compress the JSON with zlib (e.g., gzip or deflate) before storage or transfer to reduce bandwidth.

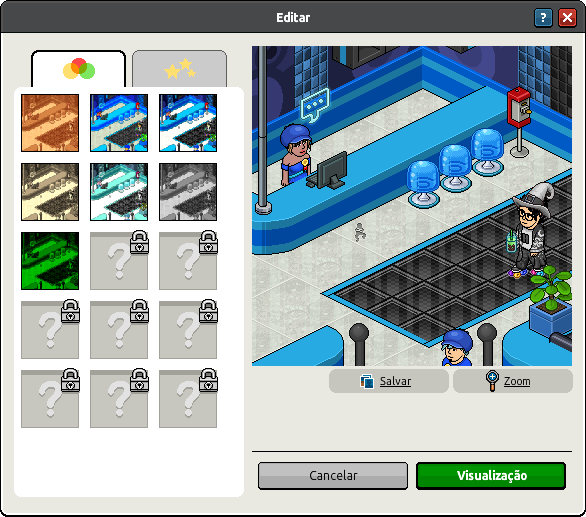

13. Reference Table for Camera Effects

Below is a lookup table of all supported camera effects, their display names, and their images:

Effect Identifier	Display Name	Image
yellow	Yellow
alien_hrd	Alien slime
black_white_negative	Black white negative
blue	Blue
bluemood_mpl	Blue mood
coffee_mpl	Coffee stains
color_1	Pale
color_2	Gray
color_3	Rosy
color_4	Light gray
color_5	Magenta
dark_sepia	Sepia
decr_conrast	Decrease contrast
decrease_saturation	Decrease saturation
drops_mpl	Drops
finger_nrm	Oops, finger
frame_black_2	Black and white
frame_gold	Golden ornament
frame_gray_4	Gray
frame_wood_2	Wooden
glitter_hrd	Rainbow glitter
green	Green
green_2	Overlit green
hearts_hardlight_02	Hearts
hue_bright_sat	Strange light
hypersaturated	Hypersaturated
increase_contrast	Increase contrast
increase_saturation	Increase saturation
misty_hrd	Misty
night_vision	Night vision
pinky_nrm	Pink haze
red	Red
rusty_mpl	Mud stains
security_hardlight	Security camera
shadow_multiply_02	Shadow
shiny_hrd	Shiny
stars_hardlight_02	Stars
texture_overlay	Antique
toxic_hrd	Toxic
x_ray	X-ray

11. Appendix A: JSON Schema

You can use the schema by adding this file as your $schema.

{
  "$schema": "https://json-schema.org/draft/2020-12/schema",
  "$id": "https://habbianos.github.io/notations/camera/spec/HCDS-v1_0.schema.json",
  "title": "RoomSnapshot",
  "description": "JSON schema representing a room snapshot, including planes, sprites, filters, and metadata.",
  "type": "object",
  "properties": {
    "planes": {
      "description": "Array of geometric planes in the scene",
      "type": "array",
      "items": { "$ref": "#/$defs/plane" }
    },
    "sprites": {
      "description": "Array of sprites placed in the scene",
      "type": "array",
      "items": { "$ref": "#/$defs/sprite" }
    },
    "modifiers": {
      "description": "Object of applied modifiers (dynamic keys)",
      "type": "object",
      "additionalProperties": true
    },
    "filters": {
      "description": "Sequence of filter effects applied to the image",
      "type": "array",
      "items": { "$ref": "#/$defs/filter" }
    },
    "roomid": {
      "description": "Unique identifier of the room",
      "type": "integer"
    },
    "zoom": {
      "description": "Zoom level of the view",
      "type": "integer"
    },
    "status": {
      "description": "Rendering status code",
      "type": "integer"
    },
    "timestamp": {
      "description": "Timestamp in milliseconds since Unix epoch",
      "type": "integer"
    },
    "checksum": {
      "description": "Checksum value for data integrity",
      "type": "integer"
    }
  },
  "required": [
    "planes", "sprites", "modifiers", "filters",
    "roomid", "status", "timestamp", "checksum"
  ],
  "additionalProperties": false,
  "$defs": {
    "plane": {
      "type": "object",
      "properties": {
        "color": {
          "description": "Plane color as integer (RGB)",
          "type": "integer"
        },
        "bottomAligned": {
          "description": "Whether the plane is aligned to the bottom",
          "type": "boolean"
        },
        "z": {
          "description": "Depth (Z-axis) of the plane",
          "type": "number"
        },
        "cornerPoints": {
          "description": "Four vertices defining the plane rectangle",
          "type": "array",
          "minItems": 4,
          "maxItems": 4,
          "items": { "$ref": "#/$defs/point" }
        },
        "texCols": {
          "description": "Collection of textures applied to the plane",
          "type": "array",
          "items": { "$ref": "#/$defs/texCol" }
        }
      },
      "required": ["color", "bottomAligned", "z", "cornerPoints", "texCols"],
      "additionalProperties": false
    },
    "point": {
      "type": "object",
      "properties": {
        "x": { "description": "X coordinate", "type": "integer" },
        "y": { "description": "Y coordinate", "type": "integer" }
      },
      "required": ["x", "y"],
      "additionalProperties": false
    },
    "texCol": {
      "type": "object",
      "properties": {
        "assetNames": {
          "description": "List of texture asset names",
          "type": "array",
          "items": { "type": "string" }
        }
      },
      "required": ["assetNames"],
      "additionalProperties": false
    },
    "sprite": {
      "type": "object",
      "properties": {
        "x": { "description": "X position of the sprite", "type": "integer" },
        "y": { "description": "Y position of the sprite", "type": "integer" },
        "z": { "description": "Depth (Z-axis) of the sprite", "type": "number" },
        "name": { "description": "Graphic resource identifier", "type": "string" },
        "color": { "description": "Applied color on the sprite (RGB)", "type": "integer" }
      },
      "required": ["x", "y", "z", "name", "color"],
      "additionalProperties": false
    },
    "filter": {
      "type": "object",
      "properties": {
        "name": { "description": "Filter name", "type": "string" },
        "alpha": {
          "description": "Filter intensity level (0–255)",
          "type": "integer",
          "minimum": 0,
          "maximum": 255
        }
      },
      "required": ["name", "alpha"],
      "additionalProperties": false
    }
  }
}

12. References

JSON Schema Draft 2020-12

Changelog

v1.0.0 – 2025-04-29
- Initial draft of the HCDS specification.
v1.0.1 - 2025-04-30
- Minor touches in the Abstract section.

⬆️ Back to top

✏️ Edit this page on GitHub
